Place of Origin:
China
Brand Name:
JYH-Strong 3D Print Services
Certification:
ISO9001 Certificate of quality system/16949
Model Number:
Customized
Making 3d Prints Stronger And Custom 3D Printing Service With Low-Cost
3D printing service
3D printing for rapid prototyping and production in as fast as 1 day. Get a 3D printing quote with DFM analysis today — no matter what stage your project is at.Structural integrity in 3D printing is important as 3D prints must not collapse while functioning. 3D printing is a popular manufacturing process with wide acceptance because of the quality it delivers. In terms of improving the strength of 3D printed parts, there are many things that come to play.
Our 3D Printing Processes

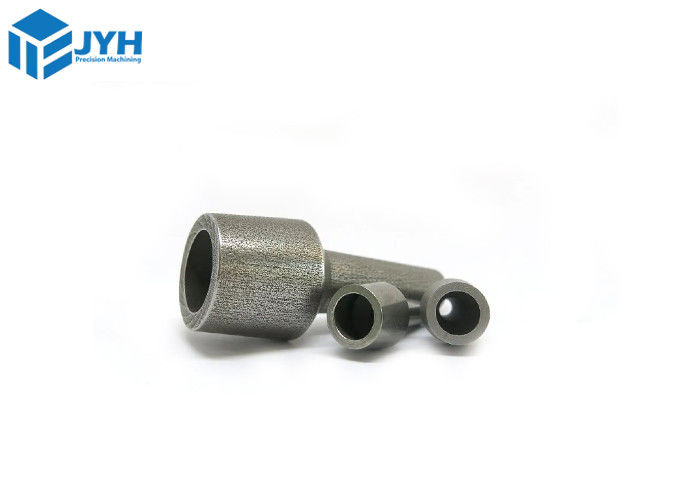

Direct metal laser sintering (DMLS)
uses a fiber laser system that draws onto a surface of atomized metal powder, welding the powder into fully dense metal parts.
Stereolithography (SLA)
uses an ultraviolet laser that draws on the
surface of liquid thermoset resin to create thousands of thin layers
until final parts are formed.
Stereolithography (SLA)
| Lifecycle | Lead Time | Resolution | Materials |
| Short production runs, Prototyping | 3 days | 0.05 mm | Accura 25, Accura ClearVue, Accura 60, Accura Xtreme Grey or White 200 |
Material Properties
| Tensile Strength | Elongation at Break | Modulus of Elasticity | Flexural Strength |
| 38 MPa (5510 psi) | 16% | 1620 MPa (325ksi) | 57 MPa (8267 psi) |
Design Recommendations
| Max Part Size [x, y, z] | Min Clearance + Gaps for Fit | Min Wall Thickness |
10 x 10 x 10 inches (635 x 736 x 533 mm) | 0.5 mm between parts that need to be assembled 0.2 mm between shells of an interlocking part | 1 mm |
Increase Infill Density
One way of increasing the strength of a 3d print is by increasing the interior density. The interior density ranges from 0% to 100%, with zero means totally hollow while 100 means totally solid.
Theoretically, having a 100 infill density should make your 3D print very strong. However, practically most designers have noticed that anything beyond 70% has a lesser impact on strengthening the 3D print. Instead, there is a tremendous increase in filament use, printing time, cost, and burden on the 3D printer.

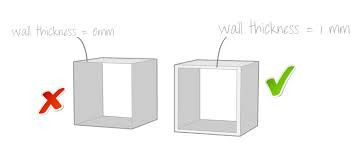

Increase Wall Thickness
Not only does increasing the wall thickness strengthen the printed material, but it also improves overhangs
(geometry shapes in 3D models that are difficult to print) and water tightness.
Shipping way:
Payment method:
Making 3d Prints Stronger And Custom 3D Printing Service With Low-Cost,JYH is your best partner!
