Place of Origin:
China
Brand Name:
JYH Technology
Certification:
ISO9001 Certificate of quality system/16949
Model Number:
metal prototype
video

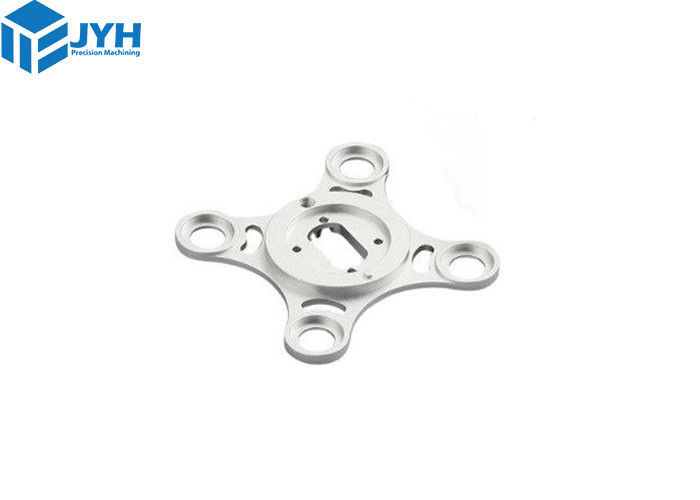

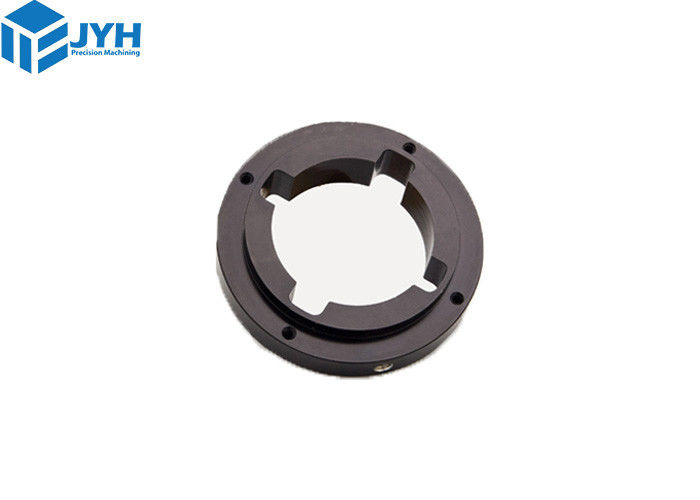

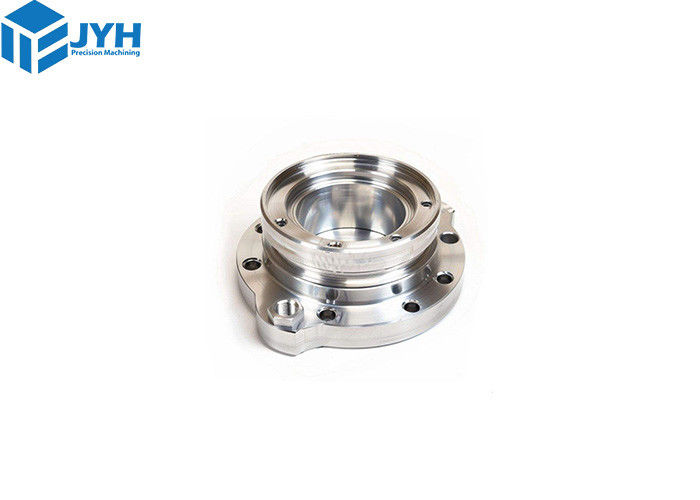

OEM fast custom UAV accessories 5-axis CNC machining services
5-axis machines are the most complex type of CNC machine tool because they can do almost any type of operation.
Our ISO 9001 certification shows that we fabricate 5-axis machining parts to meet the tightest tolerance requirements.
Our standard tolerance for CNC milling plastics is ISO-2768-M and ISO-2768-F for metals.Get high-quality and precise
complex parts with top-notch dimensional stability.
Our 5-axis milling services is your best bet when it comes to manufacturing complex, highly precise components for a wide
range of industries. Our manufacturing capabilities allow us to accelerate the production of several components, including:
Automotive Componets:Engine housing, light guide, valve, engine cover, inspection fixture.
Aerospace Parts:Fuselage sections, bulkheads, landing gear components.
Medical and Surgical tools:Forceps, scalpels, spacers, clamps, cutters, surgical scissors.
ISO 9001:215 | AS9100D | ITAR Registered
►Free & Automatic DFM feedback
►Tolerances down to ±0.0004″ (0.01mm)
►24/7 engineering support
|
CNC Turning
A Machining Process That Rotates a Workpiece While a Cutting Tool Removes Material from the Surface, Suitable for Cylindrical or Round-Shaped Parts Made of Various Materials Such as Metals, and Plastics, And Woods. Advantages: High Precision, Repeatability,And Efficiency in Mass Production.
|
CNC Milling
A Machining Process That Uses Rotary Cutters to Remove Material from a Workpiece, Suitable for Flat or Irregularly Shaped Parts Made of Various Materials Such as Metals, Plastics, And Woods.
Advantages: Versatility in Creating Complex Shapes, High Precision, Repeatability, And Efficiency in Mass Production.
|
|
Stamping process
A processing method that uses a mold to process metal sheets or other materials on a punching machine. In the stamping process, the metal plate is pressed, stretched, bent, scaled and other operations through the mold to achieve the precise control of the shape and size of the workpiece |
Sheet metal bending
A commonly used metal processing process, used to bend sheet metal into the desired shape according to the design requirements. This process is mainly used in the manufacture of various metal components, parts and products, such as boxes, shells, frames and so on.
|
Product Advantages:
|
Machining ability
|
|
| Overview: |
1. The marked price is not the actual price, the actual quotation is required.
|
|
2. Buyers who need to provide detailed drawings (CAD/DXF format, STP format or tolerance size) can contact our customers Service, we can confirm the processing, please feel free to contact me.
|
|
|
3. Customized products do not support cancellation of orders.
|
|
| QC control: |
100% inspection of key dimensions.
|
| why did you choose us |
Excellent quality + on-time delivery + timely feedback + competitiveness.
|
| Processing: |
CNC Milling,CNC Turning,Wire-cut EDM,Precision grinding,Lathe machining,Drilling. Bending,Stamping,Laser Cutting,Broaching. etc.
|
| surface |
Anodizing, sandblasting, bead spraying, powder spraying, paint, alkali/passivation, galvanizing, laser, etching, polishing, chrome plating, etc.
|
| Finish: |
all kinds of finish available.
|
Tolerance for 5 Axis CNC Machining Services
| Type |
Tolerance |
| Linear dimension |
+/- 0.015 mm +/- 0.002 inch |
| Hole diameters (not reamed) | +/- 0.015 mm +/- 0.002 inch |
| Shaft diameters | +/- 0.015 mm +/- 0.002 inch |
| Part size's limit | 860 * 660 *650 mm 39.0 * 23.5 * 23.5 inch |
5 Axis CNC Machining Part Size Standards
| Classification | Minimum Size (mm) | Maximum Size (mm) | Common Applications |
|---|---|---|---|
| Ultra-Precision Components | 0.1 | 1 | Watch components, micro devices |
| Micro Machined Parts | 1.1 | 10 | Medical devices, small electronics |
| Small Machined Parts | 10.1 | 50 | Aerospace, automotive sensors |
| Medium Machined Parts | 50.1 | 200 | Automotive, defense, industrial tools |
| Large Machined Parts | 200.1 | 1000+ | Heavy machinery, construction |
We offer:
Custom manufacturing and assembling precision/general machining parts. With surface treatment are available. These custom
parts are widely used in:communication, electronics, medical industry, aviation, railway breaking system, etc.
JYH is engaged in the production of precision CNC machining parts and has high-end technology.
We specialize in CNC machining parts manufacturing, 3D printing services, sheet metal machining, laser cutting, various surface treatments: anodizing, polishing, electroplating, chrome plating, engraving, screen printing, etc.
We have high precision drone accessories:
Advanced CNC lathe machining center, 3/4 axis CNC machining center.
5 axis CNC machining center, CNC bending machine/laser cutting.
SLA/SLS 3D printing center, CNC punching machining center.
Features Of 5 axis CNC Machining Services in JYH Precision Machining:
5 Axis CNC machining services at JYH Precision Machining have many advantages for product development that
can make it the ideal solution not only for rapid prototyping but also for volume production.
Here is what you should consider.
Surface Finish Options for 5 Axis CNC Machining Parts
Our part finishing services are exceptional as our teams are experts in plastic, composite, and
metal surface finishing.Furthermore, we have state-of-the-art machines and infrastructure to bring your idea to life.
Quality Inspection
we have a coordinate measuring machine, salt spray testing machines, profile projectors and other precision
measuring devices, etc.
direct comparison to the dimensions that are taken from the physical part.
GB/T 16857.2-2006 (ISO10360-2:2001) standards. All components and sub-assemblies are 100% inspected,
identified with a logo if required and a final inspection is generated pertaining to all the critical dimensions.
Our payment method
Our shipping method
Frequently Asked Questions
► When should I choose 5-axis CNC machining?
The flexibility of 5-axis CNC machining allows the creation of complex components with complex shapes and geometrical details.
The stability of the machining tool also gives more consistent and smoother surface finishes.
Therefore, you should choose 5-axis machining whenever you need to produce complex parts with tight tolerances.
► What’s the maximum part size for 5-axis CNC machining?
Our 5-axis milling machines can accommodate a length of 42 inches bar stock.
This allows us to work on a wide range of projects for various applications.
► How much does your CNC machining service cost?
The cost of your CNC machining projects is not fixed as it depends on the characteristics of your project
such as the design, and tolerances. Machining times of the material to be used in the project also contribute to this pricing.
For example, if you’re making a part that has a combined machining and material cost of $2 and a setup cost of $200,
one part will cost $202. However, if you make 200 parts, each would cost $3!
Our workshop
Try JYH technology Now!All information are secure and confidential by us!
